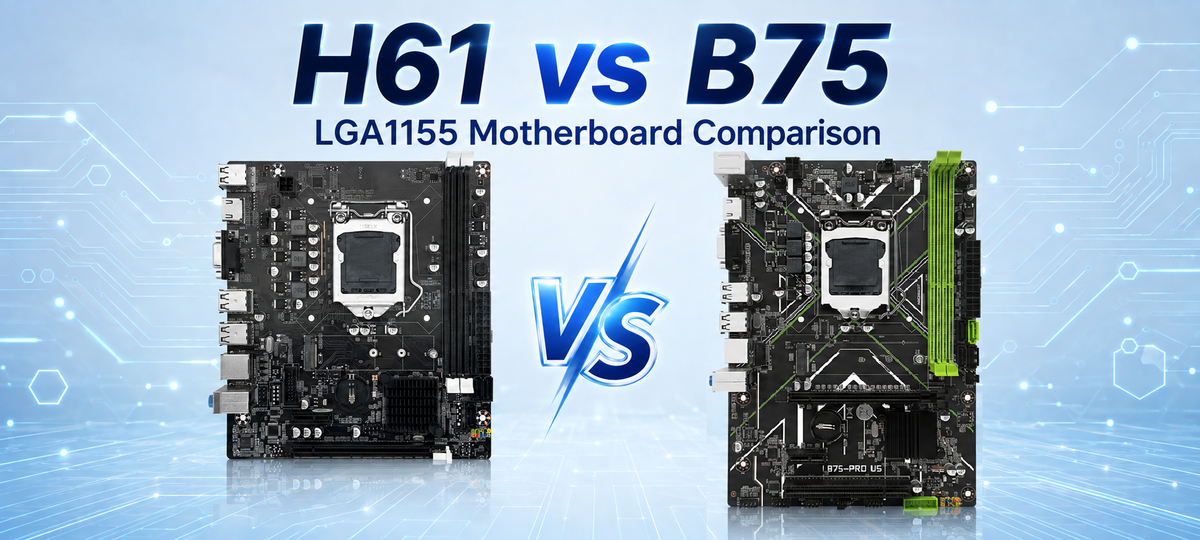

When building or upgrading an older Intel-based PC, choosing the right motherboard can significantly affect performance, expandability, and long-term usability. Among the popular LGA 1155 motherboards, the Intel H61 and B75 chipsets are two common choices, especially for systems using 2nd and 3rd generation Intel Core processors such as the Core i3, i5, and i7 series.
Although both chipsets support the same CPU socket, they target different users. The H61 is designed as an entry-level budget platform, while the B75 offers more features and better expansion capabilities for business and mainstream users.
In this article, we will compare H61 and B75 motherboards in terms of specifications, performance, features, upgrade potential, and overall value.
1. Overview of H61 and B75 Chipsets
The Intel H61 chipset was introduced in 2011. It became popular because of its low cost and compatibility with a wide range of Intel CPUs.
The Intel B75 chipset was released later as part of the 7-series chipset family. Compared with H61, B75 improved connectivity, storage support, and overall functionality.
Both chipsets use the LGA 1155 socket, meaning they can support processors such as:
◾ Intel Core i3-2100 / i3-3220
◾ Intel Core i5-2400 / i5-3470
◾ Intel Core i7-2600 / i7-3770
◾ Intel Pentium and Celeron LGA 1155 CPUs
However, the motherboard features are quite different.
2. H61 vs B75 Specifications Comparison
| Feature | H61 Motherboard | B75 Motherboard |
| CPU Socket | LGA 1155 | LGA 1155 |
| Supported CPUs | 2nd/3rd Gen Intel Core | 2nd/3rd Gen Intel Core |
| Memory Support | DDR3 | DDR3 |
| Maximum Memory | Usually 16GB | Usually 16GB or 32GB |
| Memory Slots | Mostly 2 slots | Usually 2 or 4 slots |
| SATA Support | SATA 3Gb/s | SATA 6Gb/s + SATA 3Gb/s |
| USB Support | USB 2.0 mainly | USB 3.0 support |
| PCI Express | PCIe 2.0 | PCIe 3.0 (Determined by CPU) |
| Overclocking | No | No |
From the specifications, B75 clearly provides a more modern platform.
3. Power Consumption and Reliability
The difference in power consumption between H61 and B75 motherboards is minimal.
The bigger factor is motherboard quality. A high-quality B75 motherboard with better VRMs, capacitors, and cooling can provide better reliability than a low-cost H61 board.
For office computers, home servers, or systems expected to run continuously, B75 is generally the safer option.
4. Which One Should You Buy?
Choose an H61 motherboard if:
◾ You need the cheapest possible LGA 1155 solution
◾ You are using an Intel Pentium, Celeron, or Core i3 processor
◾ You only need basic office work or web browsing
◾ You do not need many expansion options
H61 remains a good choice for ultra-budget builds.
Choose a B75 motherboard if:
◾ You use a Core i5 or Core i7 processor
◾ You want to install a SATA SSD
◾ You need more RAM capacity
◾ You want USB 3.0 support
◾ You plan to use the computer for several more years
For most users, B75 offers a much better balance between price and features.
Conclusion
The H61 and B75 motherboards are both part of the LGA 1155 platform, but they serve different purposes. H61 focuses on affordability and basic functionality, while B75 provides better storage, memory support, connectivity, and future upgrade options.
If you are building the cheapest possible LGA 1155 computer, H61 is still a reasonable choice. However, if the price difference is small, a B75 motherboard is usually the smarter investment because it offers significantly better features and a longer usable lifespan.
For modern budget upgrades using older Intel CPUs, B75 is the recommended choice.
